KARCHER SPRAY-EXTRACTION CLEANER Puzzi 8/1 C

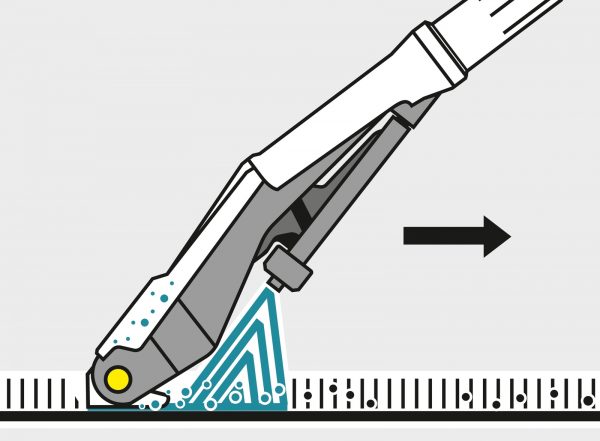

Powerful yet compact spray extraction machine for cleaning small areas of carpet. It offers the best results – in terms of reverse suction – of all comparable competitor machines. The Puzzi 8/1 C ensures fabric surfaces can be used again as quickly as possible. The power cable can be positioned using a fold-out cable hook. The machine has an integrated nozzle holder.

Low weight

• Weighing only 9.8 kilograms, this machine is around 35 percent lighter than comparable machines. Easily transported, even over obstacles and stairs. Integrated carrying handle for transport with one hand.Spray-extraction cleaner Puzzi 8/1 C: Compact design

Compact design

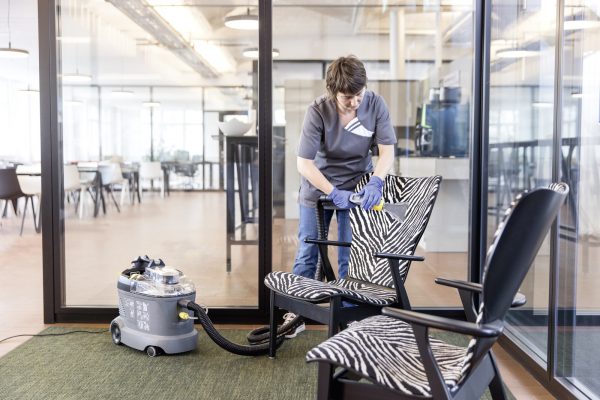

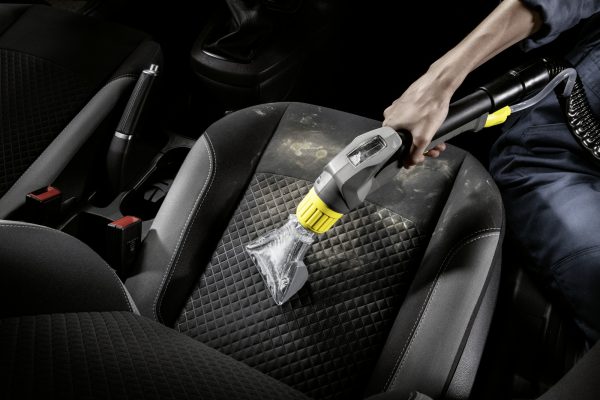

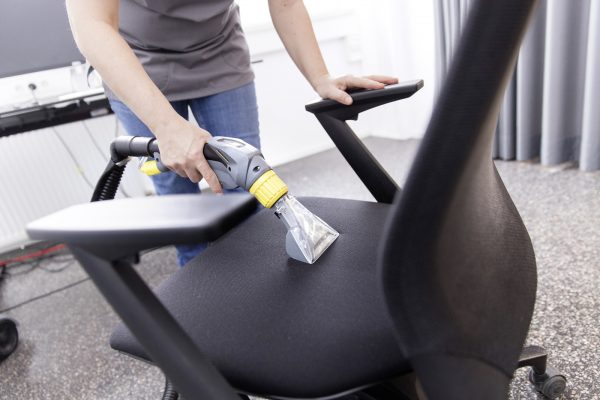

• The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors. Compact, space-saving design. Long-lasting, robust and thus very economical machine.Spray-extraction cleaner Puzzi 8/1 C: Removable, smart 2-in-1 container

Removable, smart 2-in-1 container

• Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water.

User-friendly operation

• A large foot switch for ergonomic operation makes it easier to concentrate on the cleaning task.

Equipment

• Spray hose with integrated water supply, 2.5 m
• Integrated accessory storage for hand nozzle
• Power cable, 7.5 m
• Upholstery nozzle
• Fixation for soft dusting brush
• Cable hook
• Handle with trigger

Technical data

Max. area performance (m²/h)  12 – 18

Air flow (l/s)       61

Vacuum (mbar/kPa)       230 / 23

Spray volume (l/min)      1

Spray pressure (bar)       1

Fresh/dirty water tank (l)              8 / 7

Turbine capacity (W)      1200

Pump capacity (W)          40

Supply voltage (V/Hz)    220 – 240 / 50 – 60

Weight without accessories (kg) 9.8

Weight incl. packaging (kg)          13.4

Dimensions (L x W x H) (mm)      530 x 330 x 440
